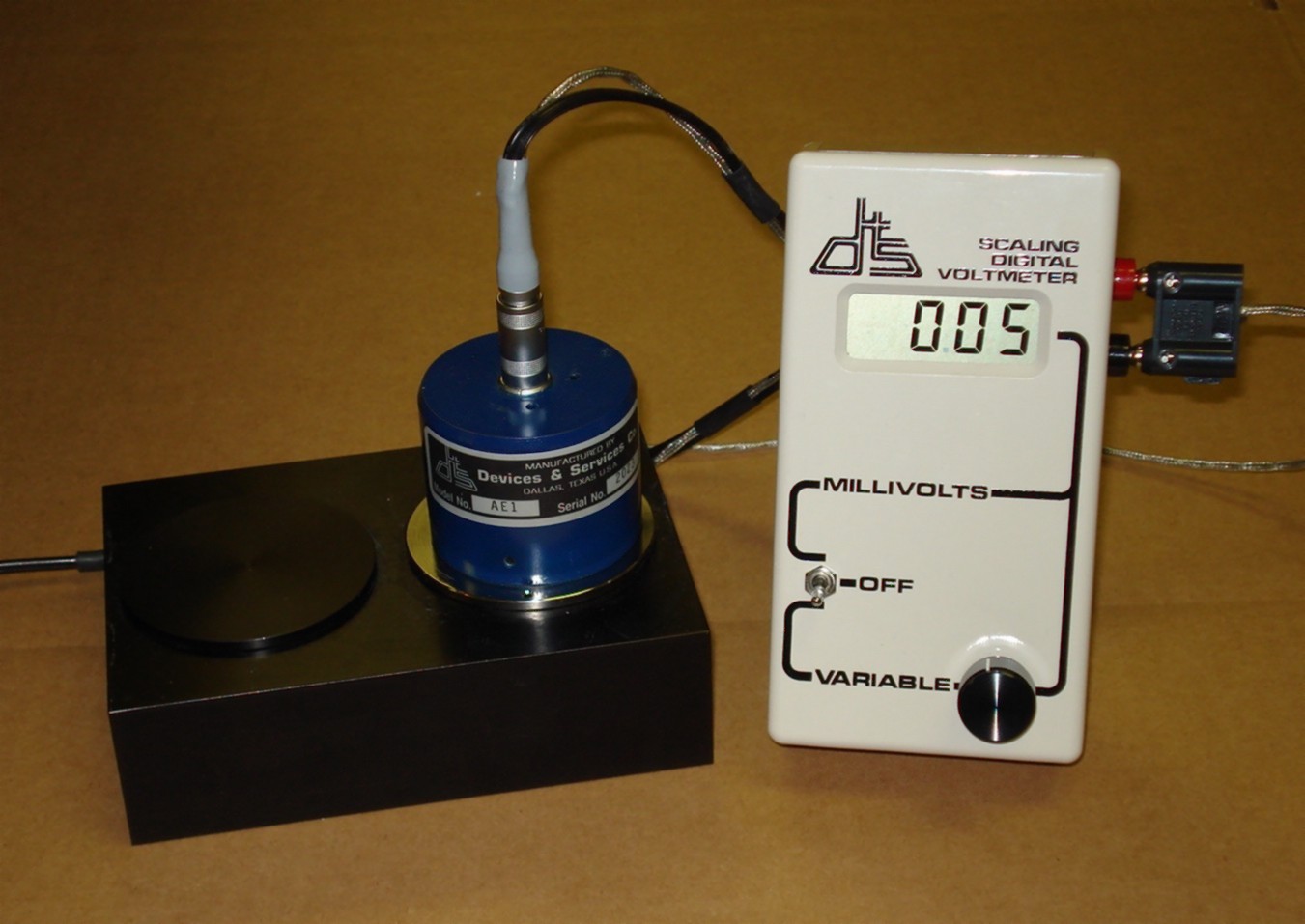

Emissometer with Scaling Digital Voltmeter Model AE1 RD1

(Click on  the image for a larger view)

The D&S Emissometer Model AE1 is a special purpose instrument for measuring emittance.

Key Benefits


bulletREPEATABILITY: +/- 0.01 emittance units.

bulletEASY TO OPERATE: The detector portion of the instrument is electrically heated so that the sample does not have to be heated. No temperature measurements are needed.

bulletRAPID MEASUREMENTS: After an initial warm up period of approximately 30 minutes, emittance readings can be made every minute and a half.

bulletINEXPENSIVE: Devices to make comparable measurements cost much more.

bullet OPTIONAL ADAPTERS: Adapters available for measuring small areas and custom adapters for irregular surface geometries.

For additional technical information refer to these Technical Notes.

Download AE1 Spec sheet in pdf form

Download AD1 Adapter Spec sheet in pdf form

Download AD3 Adapter Spec sheet in pdf form
